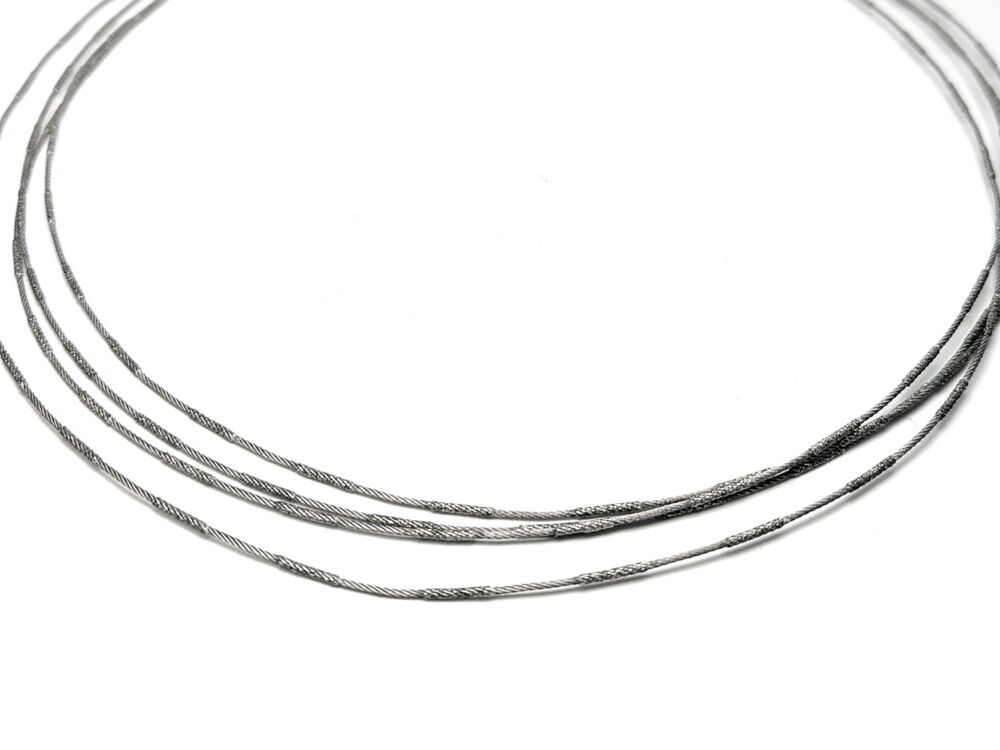

• Section-coated wire loop

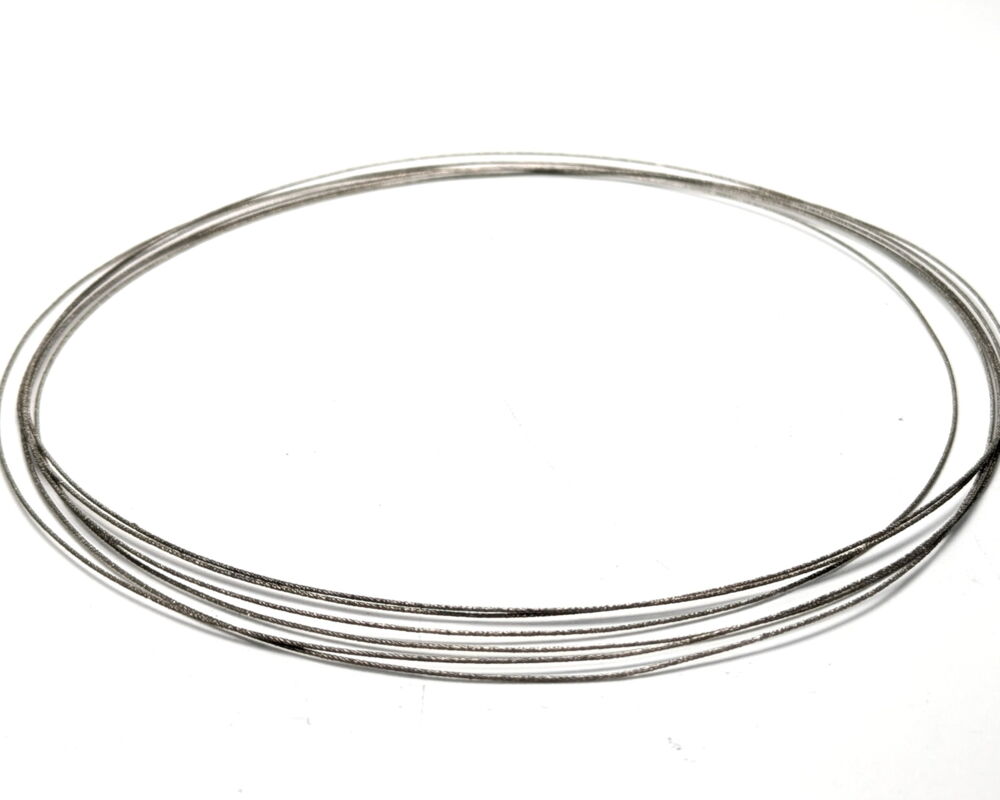

  • Fully coated wire loop

Diamond wire loops

Diamond wire grinders are cutting tools in which the wire is processed into closed loops and then coated with diamonds. They are suitable for cutting almost all materials, especially composites. This "ONE-WAY-CUT" process with wire speeds of up to 50 m/s produces only a small cutting gap and thus little material loss. Even the cutting of components with cutting heights or depths exceeding 350 mm is possible, in contrast to saws with diamond cutting wheels.

Our special multi-strand diamond wires are manufactured according to a patented process and have a service life up to 3 times longer than other diamond wire grinders available on the market. Test our wire loops also for your application. Please tell us the material you want to cut and the required wire length and diameter, which is given by your diamond wire saw for endless grinding.

For cutting e.g. car tires or larger stone slabs we offer 1.5 to 2.5 mm thick sectional wire loops, which have an interrupted diamond coating with larger chip space.

Diamond wire loop - table

Type Outer diameter
(mm)		 Grain size Kind Tensile strength
(N)		 Breaking Force
(N)		 Loop length
(mm)		 min. Wheel-Ø
(mm)
MS-030D
0,30 D25 A-N 80 130 600-4000 100
MS-035D
0,35 D54 A-N 100 180 600-4000 100
MS-045D
0,45 D76 A-N 100 180 600-4000 100
MS-055D
0,55 D91 A-N 120 250 800-6000 100
MS-065D
0,65 D107 A-N 130 250 800-6000 200
MS-080D
0,8 D126 A-N 190 310 1000-8000 250
MS-150
Section-coated wire loop
 1,5 D107 S11 200-300 3000 3000-9500 350
MS-180
Section-coated wire loop
 1,8 D213 S11 200-300 3000 3000-9500 350
MS-250
Section-coated wire loop
 2,5 D213 S11 300-400 5000 4000-27000 400

Our standard lengths are:
840 mm - 1000 mm - 1600 mm - 1690 mm - 1870 mm - 2000 mm - 2100 mm - 3000 mm - 4000 mm.
For non-standard lengths, the minimum order quantity is 5 pieces. request.
The loop lenght of 2000 mm is for the DWS.250E and the 3000 mm for the DWS.375E.

Tiered Pricing: 10–49 pcs. = 10%,    50–99 pcs. = 15 %,    100 + pcs. = 20%.

When ordering diamond wire loops, please also inform us of the material to be cut.

All prices quoted are net prices and are ex works Weinheim.
